LIMPET REACTOR

$24.00

INR 192000

( Based on 2 Customer Review )

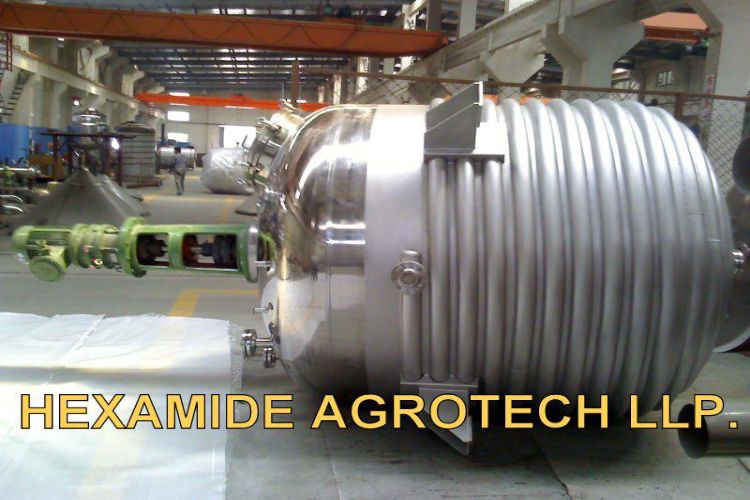

Limpet Coil Reaction Vessel consist of a Cylindrical vertical shell with standard Torispherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel.

CONTACT NOW

Introduction

Limpet Coil Reaction Vessel consist of a Cylindrical vertical shell with standard Torispherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade By Flux Core filler wire depending on MOC of the Limpet Coil to withstand design pressure.


Features:

  1. Design & Mfg with stainless steel Grade SS316L ,SS304L,IS 2062,CS
  2. Wide range of volumes From 500ltr - 50,000ltr
  3. Ability to work under pressure and vacuum
  4. Agitator/Stirring mechanism in accordance with the application of the reactor, viscosity and density of the product
  5. Available in GMP model and NGMP model, MS Jacket and SS 304 Cladding, SS 304 Jacket and SS 304 Cladding, Limpet Coil
  6. Available with Anchor agitator, PBT agitator, Propeller agitator, Hydrofoil agitator.

WE MAKING IT POSSIBLE FOR YOU.

Limpet Coil Reaction Vessel consist of a Cylindrical vertical shell with standard Torispherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade By Flux Core filler wire depending on MOC of the Limpet Coil to withstand design pressure.
